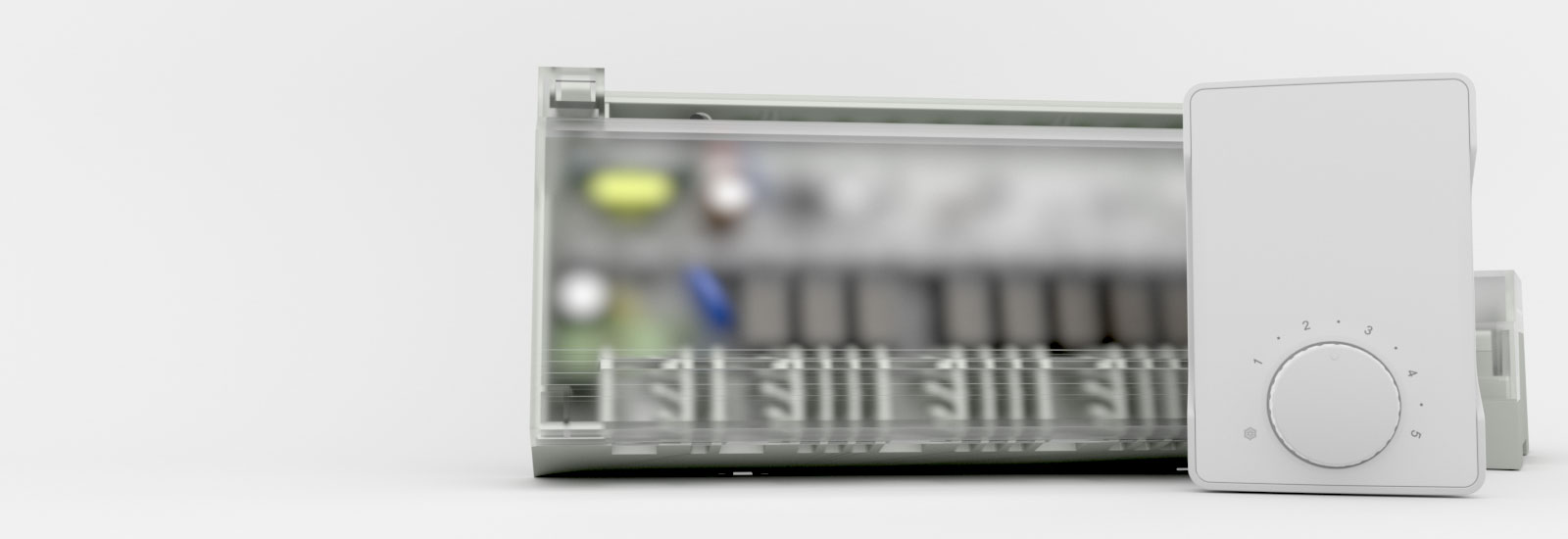

Simple wireless control

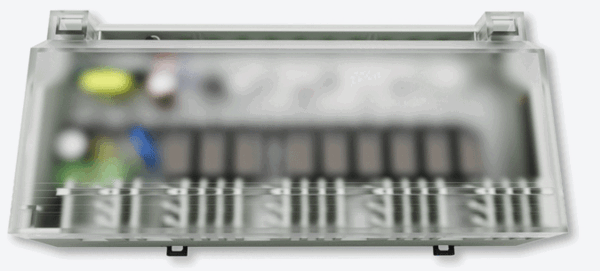

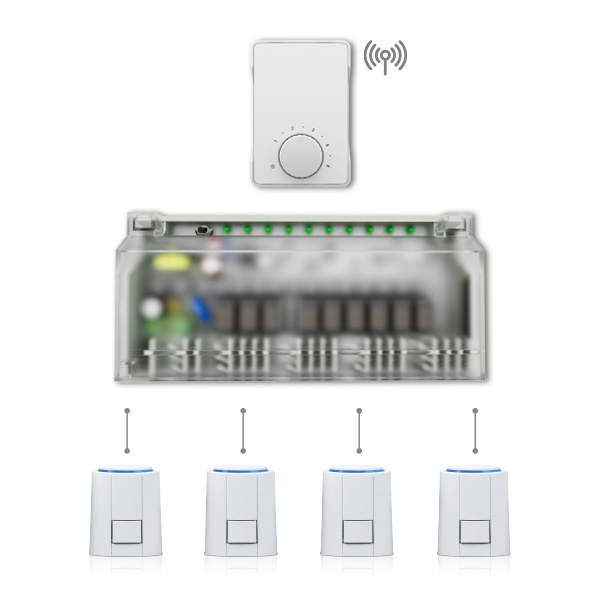

The OEM Alpha RF light base station functions as a centralised control unit for precise single room temperature control of panel heating. It enables centralised control of up to 8 heating zones and 12 valve actuators (NC) and ensures energyefficient, demand-based heat distribution. With optimised control algorithms, pump protection functions and integrated strain relief, the base station offers reliable, low-maintenance control for panel heating.

In combination with a heat pump, the 230 V base station ensures optimally coordinated and particularly energy-efficient operation. It combines centralised control, intelligent safety functions and user-friendly installation options. LEDs, a control button and a replaceable fuse make commissioning, monitoring and maintenance easier.

Pairing using the control button is easy and enables simple installation and connection to the room-control devices of the OEM Alpha RF light system.

• 230 V base station for panel heating
• Compact base station with particularly compact dimensions – ideal for small spaces in the distribution cabinet
• 8 heating zones for up to 12 valve actuators (1 to 2 per heating zone)
• Standard-compliant installation thanks to integrated strain relief
• Integrated pump module, including pump protection function
• 8 heating zone LEDs, 1 power LED, 1 pump LED
• Control button for installation
• Replaceable fuse
• Emergency mode, frost protection, valve protection, FirstOpen
• 2-point control after manual setpoint adjustment as a wireless test and check of the paired heating zones with the room-control device
• Optimised control algorithm specially for heat pumps
• Easy installation on a DIN rail or with screws
• Protective earth connection with through-wiring option

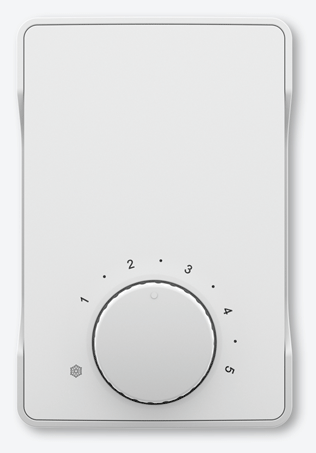

The OEM Alpha RF light room-control device Analog offers precise and reliable single room temperature control for panel heating – completely integrated into the overall system’s wireless architecture. Thanks to its extremely slim, timeless design, it integrates well with any environment and enables flexible installation without any structural alterations due to its wireless communication.

Convenient operation is key here, with a smooth setpoint adjuster and a separate control button supporting easy pairing and commissioning. The energy-efficient electronics also ensure a long battery life.

The room-control device provides a particularly easy-to-install and low-maintenance control solution. The combination of minimalist design, intuitive operation and robust wireless technology ensures stable temperature control and high system reliability.

Either screws or double-sided adhesive strips can be used to install the system on the wall. The room-control device is therefore ideally suited for various applications such as new builds, modernisation or retrofits.

• Particularly slim construction (13 mm), compact dimensions (86 mm x 58 mm) and timeless design
• Convenient operation via a smooth setpoint adjuster
• Internal button for easy pairing with the heating zones of the base station
• Setpoint temperature setting range approx. 7 – 28°C, with implicit frost protection
• Numerical temperature scale (*, 1, 2, 3, 4, 5)
• Button cell battery CR2032 with a minimum lifetime of 2 years
• Can be wall-mounted using screws or adhesive strips
