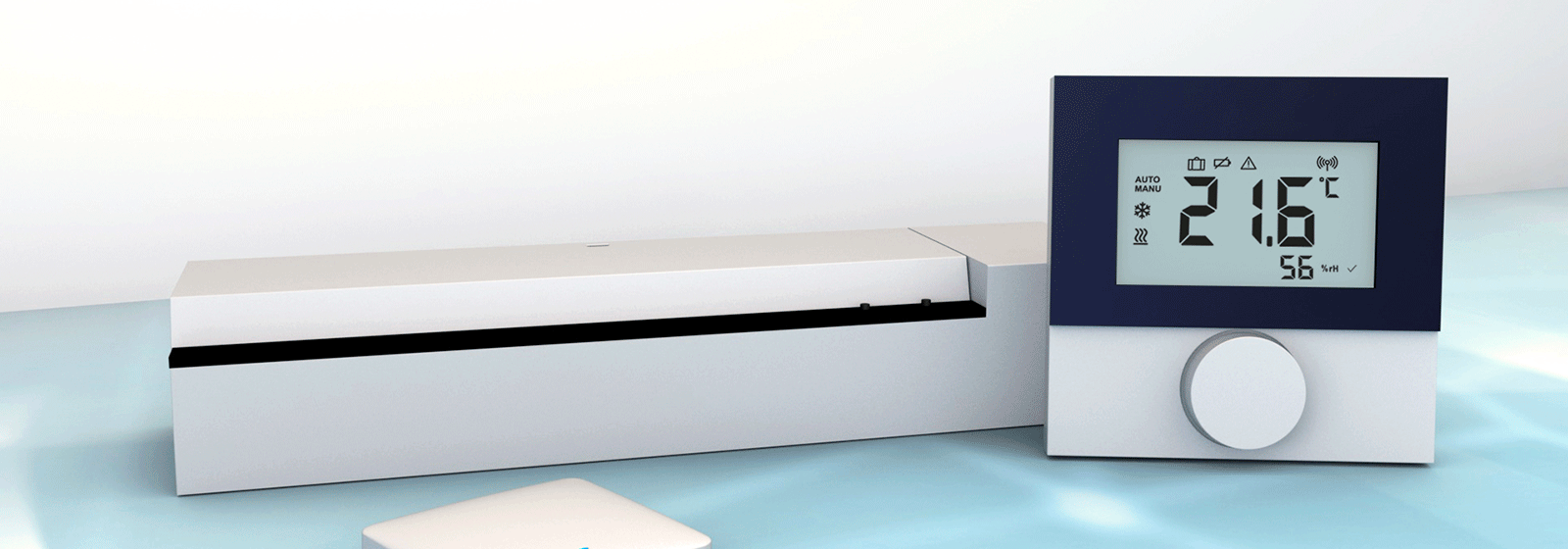

OEM Alpha Smart System radiant heating

Start into the whole world of the Smart Home with our basic range for surface temperature control.

Brochure

System components – overview and functions

OEM Alpha Smartware base station​ standard

  • 230V
  • 6 and 10 channels with 10 and 14 actuators each
  • Easy pump contact
  • cSP-L wireless protocol

OEM Alpha Smartware room-control device

  • LC Display with backlight
  • With and without design panel
  • Temperature and humidity measurement
  • cSP-L wireless protocol

OEM Alpha Smartware IoT Gateway

  • Gateway: Devices <-> Alpha Smart cloud
  • WiFi
  • cSP-L wireless protocol
  • cSP-L repeater

OEM Alpha Smartware base station premium

  • Functionality like the base station standard
  • Pump and boiler switching output
  • Dehumidifier control
  • Switch over heating cooling output (CO pilot)
  • Port for a dewpoint sensor
  • Heating/cooling function with connection for CO

OEM Alpha Smartware Thermostat direct Matrix 230 V WiFi

  • For water-based and electric underfloor heating up to 16A
  • Modern design with LED matrix display and touchscreen
  • WiFi connectivity for fast integration into the smart home

The OEM Alpha Smart app

We customise the OEM Alpha Smart App to your needs and make something very special - your own app for your own system.

Learn more

OEM Alpha Smartware base stations

Overview

Product description

The OEM Alpha Smartware base station standard is the central connection unit of the OEM Alpha Smart System.

With minimal effort, the base station is wired to all system components such as actuators. The system components are supplied directly via the power supply of the base station. All switching commands from the controllers are transmitted to the base via the IoT gateway using the csp-L protocol.

The OEM Alpha Smartware base station is available as a 6 and 10-channel version. It also has a simple pump contact.

Technical information

Overview of functions

  • Tried-and-trusted Möhlenhoff control algorithm
  • Valve protection / pump protection
  • Emergency operation
  • Frost protection
  • First Open unlocking
  • Load balancing
  • Smart start/stop function
  • Local pairing of RCD and base station
  • Immediate 2-point control after manual setpoint temperature change for 30 mins. on all heating zones in the room at the same time (deactivate load balancing for this RCD)
  • Timing functions (can be used with the cloud)
  • For heating mode
  • For NC valve actuators
  • Integrated TÜV-certified, automatic hydraulic balancing

Available versions

230 V, 6-Zones|Heating
230 V, 10-Zones|Heating

Scope of delivery

OEM Alpha Smartware base station standard in individual packaging.
The Quick Install Guide for installation and commissioning is included in the following 11 languages: English, French, German, Dutch, Italian, Spanish, Danish/Norwegian, Finnish, Swedish, Polish.

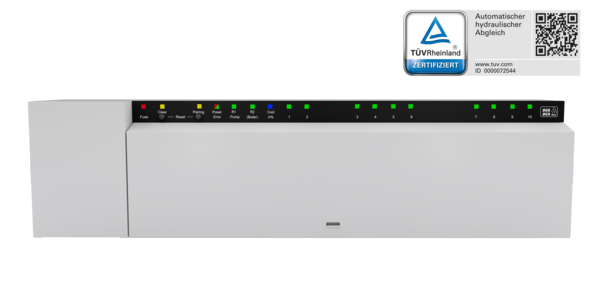

Product description

Central connection unit with premium functions

The OEM Alpha Smartware base station premium adds cooling to the OEM Alpha Smart world. Further inputs and outputs with lots of extra functions support the cooling option perfectly. The combination of the OEM Alpha Smartware base station premium with the connection set with an external sensor for the OEM Alpha Smartware room-control device means that further functions such as floor temperature control, room-control device and dewpoint sensor are possible.

Technical information

Overview of functions

Same functions as the base station standard plus the following additional functions:

  • Pump switching output
  • Boiler switching output
  • Dehumidifier control
  • Switch over heating cooling output (CO pilot)
  • Dewpoint sensor connection (floating contact)
  • Heating/cooling function with a CO connection

Available versions

230 V, 6-Zones|Heating and Cooling
230 V, 10-Zones|Heating and Cooling

Scope of delivery

OEM Alpha Smartware base station premium in individual packaging.
The Quick Install Guide for installation and commissioning is included in the following 11 languages: English, French, German, Dutch, Italian, Spanish, Danish/Norwegian, Finnish, Swedish, Polish.



Overview of functions

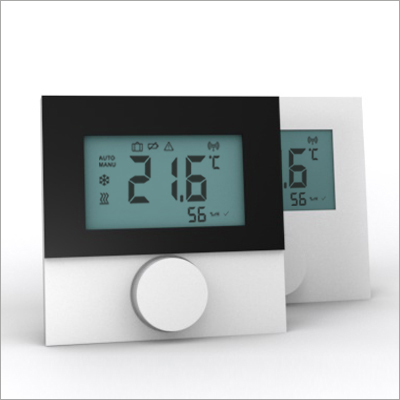

OEM Alpha Smartware room-control device

Product description

The OEM Alpha Smartware room control unit serves as the local control unit of the OEM Alpha Smart System.

Developed for daily use, the room control unit offers all the necessary functions that can optionally be synchronised via the OEM Alpha Smart Cloud.
This means you can operate the Alpha Smart System as a stand-alone or cloud solution.

Technical information

Overview of functions

  • Operating the key functions on the device
  • Setpoint temperature, holiday mode can be deactivated
  • Display of actual temperature, humidity, wireless signal, battery level, error, time (if with cloud)
  • 1 room-control device can be connected to X heating zones
  • Display lighting
  • Pairing, unpairing, factory reset

Room control device with connection set

If the connection set is connected to the Alpha Smartware room control device and paired with the Alpha Smartware base station premium, three additional functions are available:

  • Room sensor
  • Floor sensor (minimum and maximum floor temperature monitoring)
  • Dewpoint sensor

Available versions

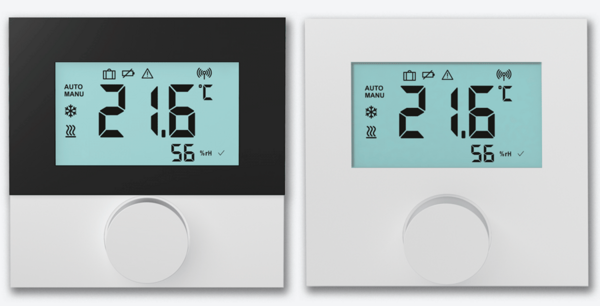

The OEM Alpha Smartware room control unit is supplied in the basic version as a neutral design without logo in white. Available with and without design panel.



Scope of delivery

The Quick Install Guide for installation and commissioning is enclosed in the following 11 languages:
German, English, French, Dutch, Italian, Spanish, Danish/Norwegian, Finnish, Swedish, Polish.



Overview of functions

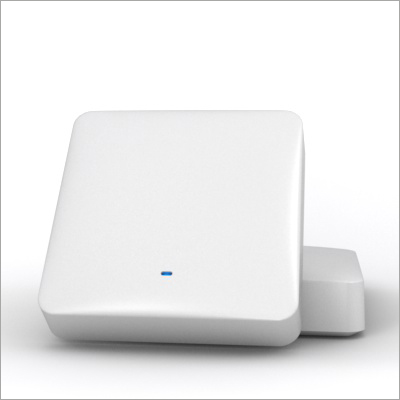

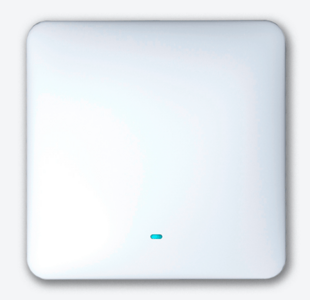

OEM Alpha Smartware IoT Gateway

Product description

The Alpha Smartware IoT gateway (IOTG 26001-xx) securely connects smart devices to the Alpha Smart Cloud. It is a basic requirement for the connection of Alpha Smartware components to the Alpha Smart cloud. Data transfer is encrypted via the device to protect the data from unauthorised access. Data security is industry standard with end-to-end AES-128 hardware-based encryption between the sensor and Alpha Smart cloud.
The Alpha Smartware IoT gateway allows the Alpha Smart system to be set up and controlled using the Alpha Smart app.

Technical information

Overview of functions

  • OEM Alpha Smartware IoT gateway for encrypted communication of the wirelessly connected Alpha Smartware devices with the Alpha Smart cloud
  • Several OEM Alpha Smartware IoT gateways function perfectly with one another, providing excellent wireless coverage, even in large properties
  • OEM Alpha Smartware IoT gateways can be managed in several properties from one app
  • Can be used within the Alpha Smartware system as an cSP-L wireless repeater
  • From a detached house to large properties

Available versions

The basic version of the Alpha Smartware IoT Gateway is supplied as a neutral version without a logo in white.



Scope of delivery

The Quick Install Guide for installation and commissioning is enclosed in the following 11 languages:
German, English, French, Dutch, Italian, Spanish, Danish/Norwegian, Finnish, Swedish, Polish.

Overview of functions

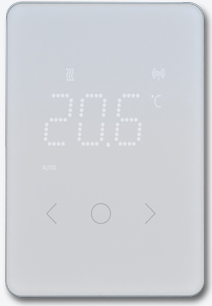

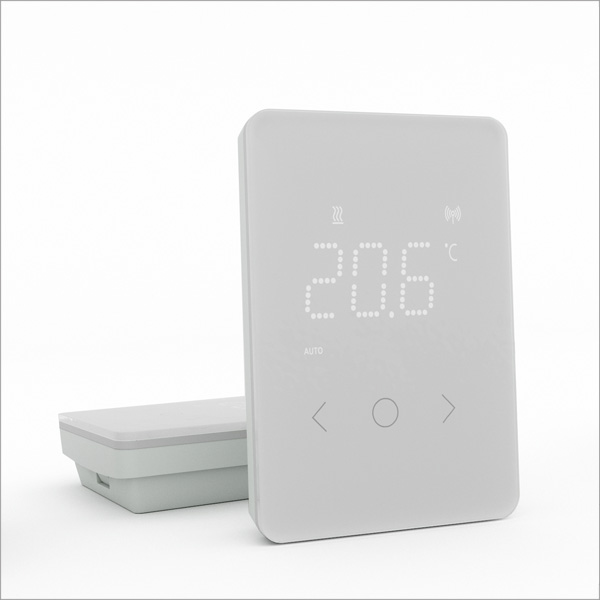

OEM Alpha Smartware Thermostat direct Matrix 230 V WiFi

Product description

The new OEM Alpha Smartware Thermostat direct Matrix 230 V WiFi is suitable for water-based and electric underfloor heating systems up to 16 A. It can be used stand-alone or with the OEM Alpha Basis direct product variants in the field of water-basedfloor heating systems.With its modern-design LED matrix display and touchscreen, the wired thermostat is easy and intuitive to operate and thanks to WiFi connectivity it is quickly integrated into any smart home which makes it practical to operate via the OEM Alpha Smart App or OEM customer app.

More information



Overview of functions

  • Wired room thermostat for water-based and electric underfloor heating
  • Modern LED matrix display with touchscreen
  • Can be fitted to standard flush-mounted boxes and integrated into standard 55 mm switch ranges
  • Ready to go in just a few steps thanks to WiFi connectivity
  • Can be controlled with the OEM Alpha Smart App or OEM customer app
  • Heating and cooling (for use with water-based underfloor heating systems)
  • Can be used as a stand-alone version or in the OEM Alpha direct:System for water-based underfloor heating
  • Weekly programs with up to 6 switching times per day
  • Target temperature range: 5 … 30°C
  • Heating and cooling when used in water-based systems (connection for changeover)
  • Connections for a floor temperature sensor and an external temperature sensor
  • Can’t be combined with the OEM Alpha Smartware base stations
